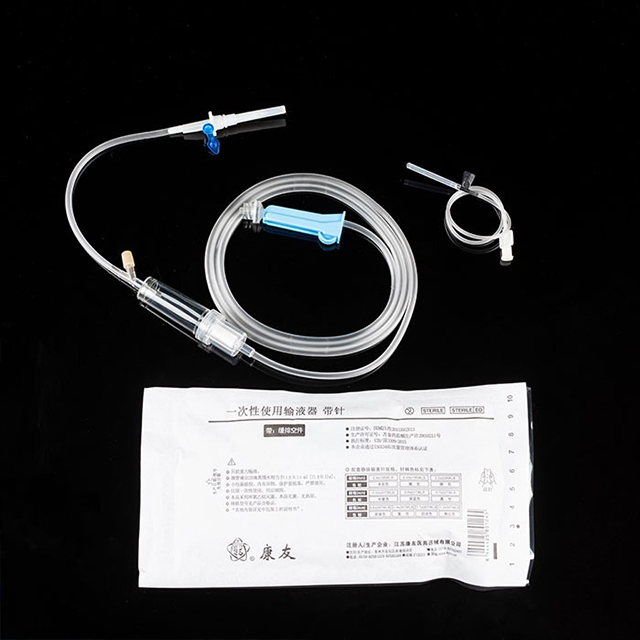

Single-Use Infusion Set with Needle (Auto-Stop Type)
Transparent, flexible, and highly elastic tubing; safe, non-toxic components.
0Transparent, flexible, and highly elastic tubing; safe, non-toxic components.
Unique drip chamber design incorporates an integrated slow-drainage component (auto-stop mechanism) that automatically halts fluid flow. This prevents air from entering the patient's veins after infusion completion, significantly reducing infusion risks. Safe and effective, it genuinely alleviates the workload of nursing staff.
Auto-Stop Function: Based on clinical trials, as the solution nears depletion, the slow-drain component (auto-stop mechanism) gradually seals the drip chamber outlet in tandem with the falling liquid level, achieving fluid cessation. The auto-stop duration is 30 minutes.
Product Features
Transparent, flexible, and highly elastic tubing; safe, non-toxic components.
The drip chamber features a unique design with an integrated slow-drain mechanism (automatic stop-flow device) that automatically halts fluid flow. This prevents air from entering the patient's veins after infusion completion, significantly reducing infusion risks. Safe and effective, it genuinely alleviates the workload of nursing staff.
Auto-Stop Function: Based on clinical trials, as the solution nears depletion, the slow-drain component (auto-stop mechanism) gradually seals the drip chamber outlet as the liquid level drops, achieving a 30-minute stop time.
Maximizes solution utilization, minimizes waste, and ensures treatment efficacy.
Optional Y-shaped medication port facilitates clinical dosing, enhancing healthcare provider efficiency.
Product Usage Tips
When the drip chamber fluid level begins to drop upon infusion completion, maintain the drip chamber at an inclination angle no greater than 45 degrees and prevent vibration. Additionally, ensure the slow-drain component remains at least 50 cm above the patient's infusion site.
If changing bottles/bags during infusion causes the slow-drain component to fail to automatically float and open the outlet, hold the tubing approximately 5-10 cm below the stopper with your left hand without releasing it. Then squeeze the drip chamber with your right hand; the slow-drain component will automatically float up.
